Brazing and heating of the motor rotor guide bars and bed

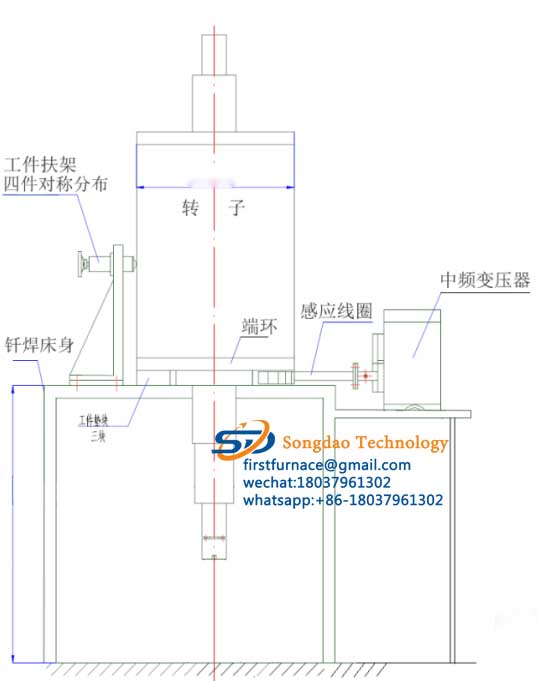

The motor rotor guide bar brazing bed possesses sufficient rigidity and durability, exhibits minimal thermal deformation , and is resistant to impact and damage. The lower frame is constructed from welded structural steel, and the platform surface is covered with high-temperature epoxy fiberglass insulation board and heat-resistant mica board, providing anti-magnetic and heat protection. The workpieces (end rings and guide bars) are placed directly onto the inductor for welding using a crane. See the image below for the motor rotor guide bar brazing bed :
